| Brand Name: | YIWO GLASS |
| Model Number: | YIWO26043002 |
| MOQ: | 1 M2 |
| Price: | USD2.1/SQM |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 2000000 sqm/year |
Ultra Clear Low Iron 2mm/3.2mm Solar Panel Glass Tempered PV Glass for Solar Power Project
Products introduction:
Low iron 3.2mm solar tempered glass, also known as photovoltaic glass, is specially designed for PV modules and solar power systems. Adopting high-quality low-iron ultra-clear raw materials, it features high light transmittance, high mechanical strength and excellent impact resistance. After strict tempering treatment, the glass owns stable performance, wind pressure resistance and weather resistance, suitable for long-term outdoor use. It is an ideal protective cover glass for solar panels, widely applied in photovoltaic power stations, household solar equipment and new energy projects.
Specification:
| Terms | condition |
| Thickness | 2mm,2.5mm,3.2mm,4.0mm,etc. |
| Width | 45mm to 1150mm |
| Iron content | < 120 PPM |
| Light transmittance | > 93.8% |
| Size | customized by request |
| MOQ | 100 square meter. |
| Terms of the payment | 100% T/T in advance. |
| packing | 100 pcs/carton/pallet. every sheet interlayed by paper. |
| Date of the delivery | In accordance with Order quantities: 5 days to 30 days. |
Features:
- Pattern Design: Available in industry-proven patterns (e.g., pyramidal, prismatic, matte) to optimize light trapping, reduce reflection, and facilitate lamination during module assembly. Custom patterns are also offered for specialized applications.
- Tempering Process: Heated to ~620°C (softening point) and rapidly quenched with high-pressure airflow, forming a compressive surface layer that enhances strength and thermal stability.
- Substrate Material: Ultra-clear low-iron glass (iron content ≤ 0.015%), minimizing visible light absorption and laying the foundation for superior transmittance.
- Thickness Range: 2mm,2.5mm,3.2mm, 4mm, 5mm (standard); 6mm–10mm (custom for heavy-duty/utility-scale projects).
Application:
- front cover glass for crystalline silicon (monocrystalline, polycrystalline) solar panels and thin-film (CdTe, CIGS, a-Si) PV modules.
- Ideal for residential rooftop PV systems, commercial building-integrated photovoltaics (BIPV), utility-scale solar farms, and portable solar devices.

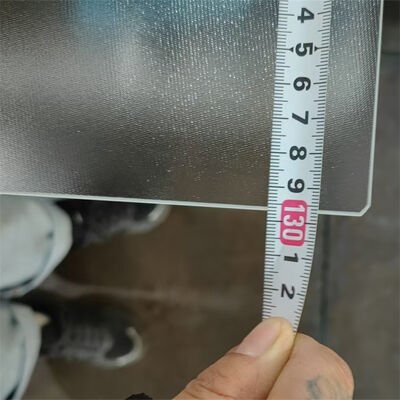

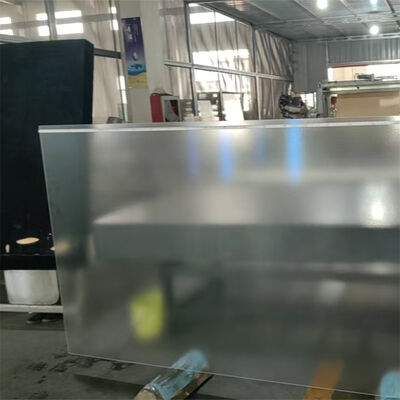

Glass Pictures:
Packages Pictures:
