| Brand Name: | YIWO |
| Model Number: | YIWO25110405 |
| MOQ: | 5 Square Meter/Square Meters |
| Price: | USD0.99-USD1.8/SQM |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 2000000 sqm/year |
2272 x 1128mm Solar Tempered Glass Solar Photovoltaic Glass 2mm 3.2mm Thickness For Solar Cell
Product Description:
Solar tempered glass is a specially developed glass for solar cell. It is made of unique formulation and high quality material whose iron content is less than 100PPM. By adopting international first-rate production technology and equipment, it has special suede and flower Solar design. This product has the characteristic of high luminousness, high stability, waterproof and high safety factor, solar tempered glass is a safety-enhanced, optically optimized glass specifically engineered for photovoltaic (PV) modules. It is produced via a thermal tempering process—heating float glass to ~600-700°C and then rapidly quenching it—creating high surface compressive stress and internal tensile stress. This treatment boosts its mechanical strength by 3-5 times compared to ordinary glass, making it highly resistant to impact, bending, and thermal shock.
Specification:
|
Thickness
|
2mm,2.5mm,3.2mm, 4mm etc |
| Type | Low Iron Solar Glass |
| Low Iron Mistlite Solar Glass | |
| Size | 2272X1128mm, customizable by request |
| Certifications | CE, ISO, CCC, BS6202 |
| Visible light transmittance | ≥ 91.5% (3.2mm ultra-clear tempered glass, without coating); ≥ 93% with anti-reflective (AR) coating. |
| Edge Processing | GRINDING |
| Surface compressive stress | ≥ 90MPa (meets GB/T 9963-2015 / ISO 12543 standards). |
| Fragmentation test | After breaking, it splits into small, blunt-edged particles (no sharp shards) to avoid damaging PV cells |
| Application | Solar energy |
Solar Panel Glass Main Features
1. Exceptional Light Transmittance: Made of low-iron glass (ultra-white glass) with minimal iron content, it eliminates the green tint of ordinary glass, achieving a light transmittance of up to 91.5%+—maximizing solar energy absorption by photovoltaic cells.
2. Enhanced Durability & Weather Resistance: Undergoes special processing (e.g., tempering, anti-reflective coating), enabling it to resist harsh outdoor conditions (UV radiation, strong wind, heavy rain, hailstones) and maintain stable performance for 25+ years.
3. Safety Performance: Tempered photovoltaic glass is 3-5 times stronger than regular glass; when broken, it shatters into small, blunt fragments, avoiding injury and ensuring the safety of photovoltaic modules.
4. Functional Optimization: Most products are coated with an anti-reflective layer to reduce light reflection loss, further improving solar energy conversion efficiency.
Application
- Architectural Decoration : It is widely used in building curtain walls, partitions, interior screens, and background walls to enhance the beauty of the building while ensuring privacy and natural light.
- Solar Energy Field : It is used as the cover glass for photovoltaic modules and solar thermal collectors, which can ensure the maximum transmittance of sunlight and improve the power generation efficiency.
- Furniture and Home Decor : It can be used for furniture doors, cabinets, and shower enclosures to increase the layering of materials and enhance the taste of home decoration.

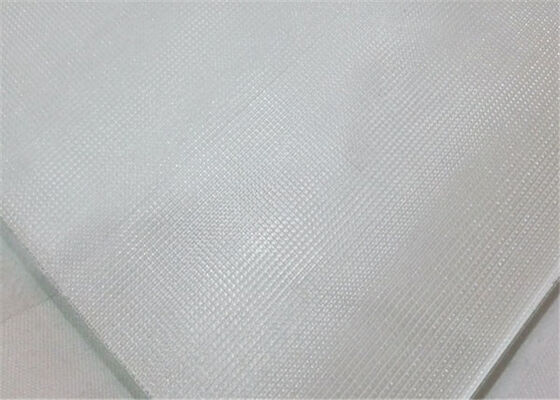

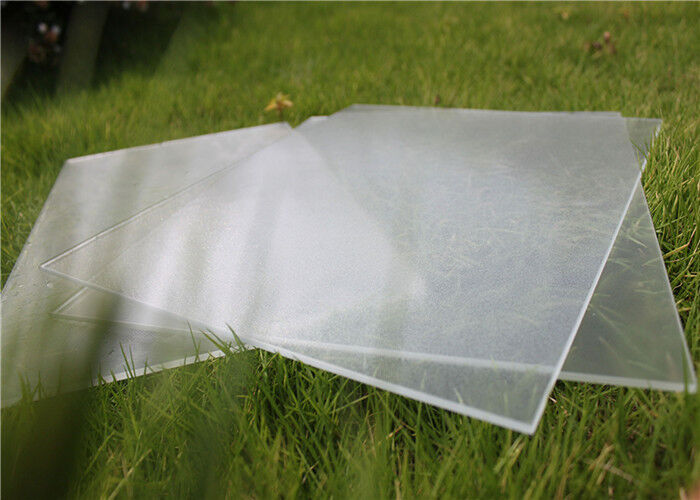

Product Pictures:
