| Brand Name: | YIWO |
| Model Number: | YIWO25110304 |
| MOQ: | 1 Square Meter/ Square Meters |
| Price: | USD0.9/SQM |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 2000000 Square Meter/Year |
High Light Transmittance Solar Tempered Panel Glass ,Flat Shape Photovoltaic Transparent Solar Glass
Product description:
Tempered low iron glass is a high-performance safety glass made by tempering ultra-white low iron glass (with extremely low iron content to eliminate green tint). Ultra white patterned glass, with its ultra-high transparency (low iron content eliminates green tint) and textured surface, is widely used in architectural decoration, home furnishing, photovoltaic energy, and more—combining aesthetics, functionality, and durability.
Specification
|
Thickness
|
2mm, 2.5mm,3.2mm,4mm |
| Max.Size | 2250*3500mm(annealed),1830*2600mm(tempered) |
| Size | 1220 x 915mm, 1830 x 1220mm, |
| Customized by request | |
| Colors | Clear and ultra clear |
| Package | Safety seaworthy wooden and plywood packing with paper interleaved |
| Applications | solar panel and solar water heater |
| Visible light transmittance | 91.7% |
| Visible Light Reflectance | 7.30% |
| solar transmittance | 92% |
| Total Solar Heat Gain Coefficient | 92.20% |
| Shading Coefficient | 1.04% |
| Size | Could be produced the sizes as per the request |
| UV Transmittance | 86.80% |
| solar reflectance | 7.4% |
| Types | 1. Solar patterned glass(tempered or non-tempered) |
| 2. Solar float glass(temoered or non-tempered) |
Features
1. Ultra high solar energy transmittance and low light reflectance.
2. Choice of patterns, either Prismatic/Matte or Matter/Matte to suit the specific application
3. The pyramidal patterns can assist in the laminating process during module manufacture, but can be used on the external surface if desired
4. Prismatic/Matte product available with Anti-Reflective (AR) coating for optimal solar energy conversion
5. Available in fully tempered/toughened form to provide excellent strength with resistance to hail, mechanical impact and thermal stress.
6. Easily to be cut, coated and tempered.
Application:
1. Architectural Decoration
- Curtain walls & skylights: Adopts diamond/rain patterns to balance high light transmittance and soft light diffusion, enhancing the sense of space in high-end commercial buildings (hotels, shopping malls) and villas.
- Partition walls & backdrop walls: Uses embossed textures to add decorative layers while maintaining transparency, creating a high-end and modern atmosphere for public or private spaces.
2. Home Furnishing
- Shower enclosures: Chooses anti-slip textured glass (e.g., frosted grain) to prevent slipping, with ultra-white clarity matching bathroom decor for a clean and premium look.
- Furniture parts: Applied to cabinet doors, wardrobe sliding doors (thin diagonal patterns), realizing "semi-transparent privacy"—hiding dust and faintly showing internal items, and compatible with secondary processing like film coating or painting.
3. Photovoltaic Energy
- Solar panel covers: Uses matte textured ultra white glass to reduce light reflection, improve solar energy conversion efficiency (transmittance up to 91.5%+), and resist wind, rain, and UV rays for outdoor long-term use.
4. Other Scenarios
- Greenhouse glass: High transparency ensures sufficient sunlight for plant growth, while patterned surfaces enhance structural stability and anti-fog performance.
- Decorative lighting shades: Utilizes light-diffusing textures to soften light, avoiding glare and adding artistic sense to indoor lighting.

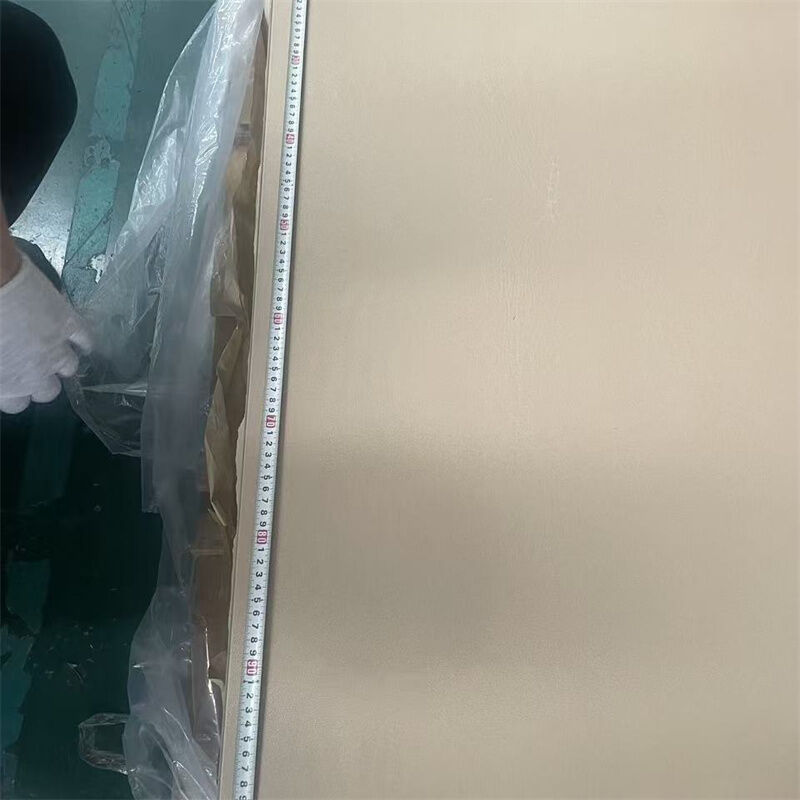

Products Pictures
Packaging&Delivery
100% Strong Plywood crates,fresh paper or wood cork between each sheet of glass panel
