| Brand Name: | YIWO |
| Model Number: | YIWO110401 |
| MOQ: | 10 Square Meters |
| Price: | USD0.9/SQM |
| Payment Terms: | T/T |
| Supply Ability: | 8000 Square Meters/ Day |
Ultra White Clear Tempered Solar Glass Size Customized For Solar Thermal Ultra Clear Photovoltaic Glass
Product Describtion:
Solar Glass which mainly used on solar panel because of its super light transmittance rate. Solar panel is a thin layer of optoelectronic semiconductor which converting solar energy into electricity. Ultra clear textured glass, also known as ultra clear patterned glass, is a high - performance glass product that combines high light transmittance with unique surface textures. Ultra clear textured glass is made by embossing an ultra clear low - iron glass substrate
Solar Glass Standards:
China: GB15763.2-2005, JC/T2001-2009, IEC/EN61215;
Europe: EN 12600: 2002, 16 CFR 1201;
America: ASTM C1048;
UK BS 6206: 1995
|
Product Name:
|
Promotion Sale 3.2mm/4mm Solar Glass for Electrucal Energy Generation |
| Certificate owned | CPVT certificate, TUV certificate, ISO certificate |
| Thickness(mm) | 2mm, 3.2mm, 4mm,5mm,6mm,etc.. |
| Max Dimension(mm) | 2250*3500mm(annealed),1830*2600mm(tempered) |
| Dimension Tolerance(mm) | ±1.0 |
| Surface Condition | Structured in same way on both sides acc. To technical requirement |
| Solar transmittance> | 91.60% |
| Iron Content | 100ppm |
| Poisson's ratio | 0.2 |
| Density | 2.5g/cc |
| Young's Modulus | 73GPa |
| Tensile strength | 90N/mm2 |
| Compressive Strength | 700-900N/mm2 |
| Expansion coefficient | 9.03 x10-6/ |
| Softening point(C) | 720 |
| Annealing point(C) | 550 |
| Strain point(C) | 500 |

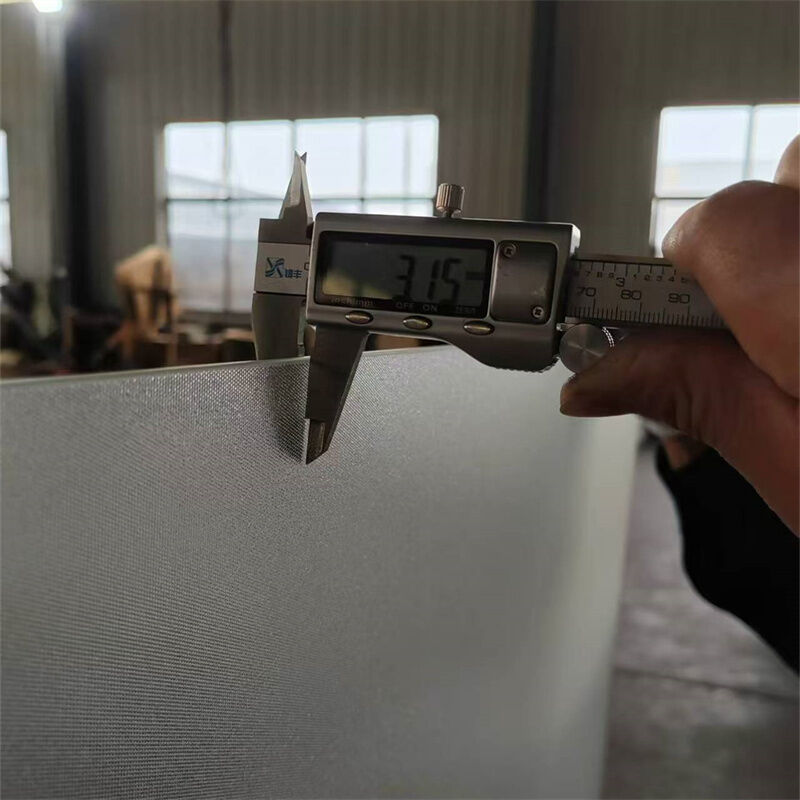

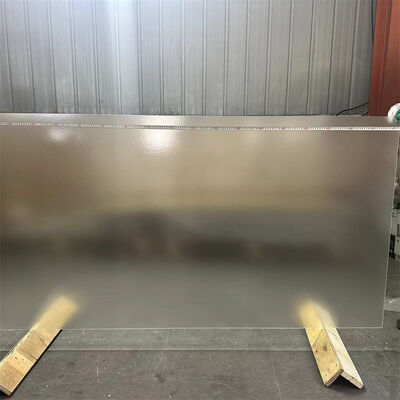

Products Pictures:
Features:
1. High Light Transmittance : Due to its low iron content, its visible light transmittance can reach over 91%, and the solar transmittance of 3.2 - mm - thick glass can reach 91.1%.
2.Unique Decorative Effect : The surface is embossed with various patterns, such as water ripple patterns, diamond patterns, etc., which can produce different light and shadow effects and enhance the aesthetic appeal of the space.
3.Good Mechanical Properties : It has high tensile strength and pressure resistance. After tempering, its strength can be further enhanced, with a tensile strength of 42N/mm² and a pressure resistance of 700 - 900N/mm².
4.Privacy Protection : The embossed texture can diffuse light, achieving a semi - privacy effect, making it suitable for occasions where a certain degree of privacy is required, such as bathroom enclosures and office partitions.
Advantages:
1. More than 20 years professional glass experience.
2. Export more than 108 countries on 6 continents.
3. Rich experience in doing business with a lot of fairly big clients.
4. Warehouses beside three main ports in China, ensuring fast delivery.
5. Equal quality Solar Glass with the most competitive price.
6. Special after-sale service department.
7. Professional sales team, offering one stop service.
