| Brand Name: | YIWO |
| Model Number: | YIWO25110301 |
| MOQ: | 10 Square Meters |
| Price: | USD0.99-USD2.1/SQM |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 2000000 sqm/year |
Low Iron Ultra Clear Tempered Solar Glass Patterned textured Solar Panel Glass CE Certificated
Products Description:
Ultra-clear tempered glass is manufactured by heating annealed glass to 620℃ in a furnace. Upon exiting the furnace, the glass undergoes rapid cooling via cold air jets, which imparts compressive stresses on its surface while maintaining tensile stress at the center.Low iron ultra-white patterned glass is a high-end decorative and functional glass variant, characterized by extremely low iron content (significantly lower than ordinary glass) and a surface with regular patterns.
Specification:
|
Shape
|
flat or curve, round |
| Max Size2272 | 6000mm*2440mm |
| Min Size | 100mm*100mm. |
| Size and Thickness | Normal size:2mm,2.5mm,3.2mm,4mm |
| Pls note:2272X1128 Customized size as requested is available. | |
| and we will arrange the right produce-plan as per your demand. | |
| Glass Colors | Clear,Ultra white |
| Edge Shape | round edge(C-edge, pencil edge), flat edge, beveled edge, etc. |
| Further Process | rough grind, finish edge, hole, polish, tempered. etc. |
| Corner | natural corner, grind corner, round corner with fine polished. etc. |
| Packaging | 1)Strong wooden crates worthy for ocean and land transportation. |
| 2)Steel belt outside for consolidation. | |
| 3)Paper or powder inside between each glass sheet. | |
| Customers | From over 20 countries worldwide. |
| Samples | Free sample will be delivered to you within one week. |
| Payment Terms | By T/T,LC Western union |
| Light transmittance | ≥91.6% (3.2mm Standard PV Glass); ≥93.6% (3.2mm AR Coated PV Glass) |
Features:
1. 4-5 times stronger than annealed glass of the same thickness.
2. Stronger resistance to thermal breakage than annealed or heat strengthened glass.
3. If breakage occurs the glass breaks up into small, cubical fragments, which are not
threatening to humans.
4. Suitable for use as a safety glass as defined by consumer product safety association
16CFR 1201, ansiz 97.1 1984 and BS6262.
5. Conforms to CCC, AS/NZS2208-1996, EN12150-1, and ASTM C1048. All work done
on glass (beveling, cutting, bending, etc) must be done before tempering.

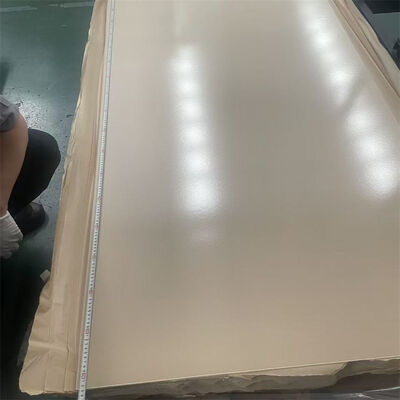

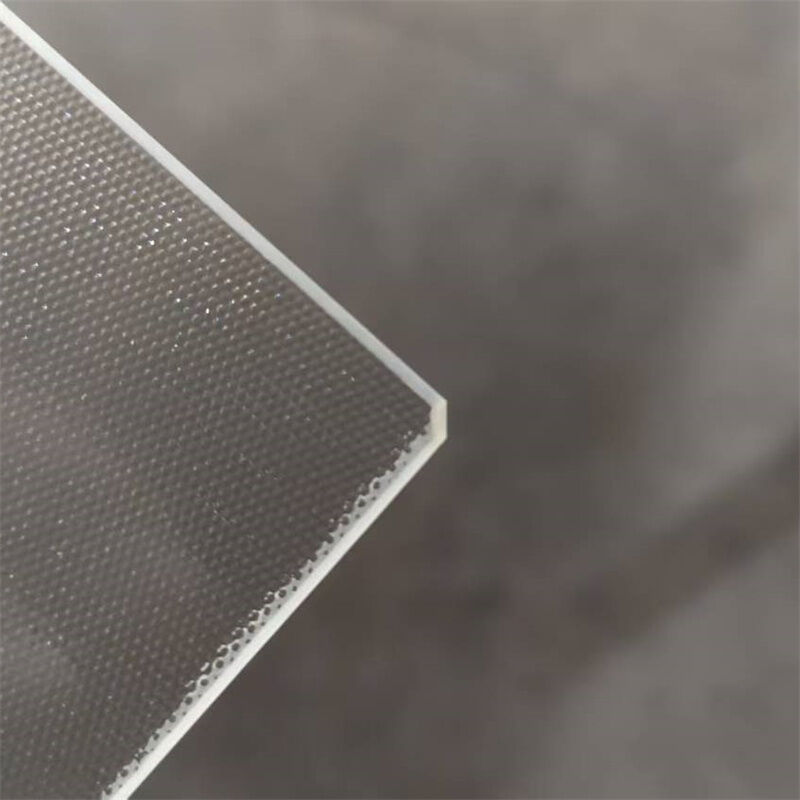

Products Pictures:
Packaging & Loading
1. Sturdy wooden crates, suitable for both ocean and land transportation.
2. External steel straps for secure consolidation.
3. Paper or powder interlayers between individual glass sheets to prevent scratches.
Our professional warehouse team supervises the entire loading process to ensure the safe loading of glass and its intact arrival at the destination. We continuously optimize our packaging and loading techniques to facilitate easier unloading, minimize breakage, and implement additional safeguards to mitigate the impacts of seasonal climate changes.
