2mm 3.2mm Irregular Shaped Low Iron Patterned Ultra White Photovoltaic Tempered Cover Glass for Solar Power System
Description of Solar Tempered Glass
Specification of Solar Tempered Glass
1. Basic Parameter
- Product Name: 3.2mm Special Shaped Low Iron Ultra-White Woven Pattern Tempered PV Glass
- Thickness: 3.2 mm
- Glass Type: Low iron ultra-white glass
- Surface: Single / double woven patterned
- Processing: Fully tempered
- Shape: Custom special shaped, irregular, cutout, chamfer, arc customized
2. Optical Performance
- Iron Content: ≤120ppm
- Light Transmittance: ≥91.5% (380~1100nm)
- Optional: AR anti-reflection coating, transmittance up to 94%
- Low reflectivity, excellent low-light response
3. Physical & Mechanical Property
- Bending Strength: ≥90 MPa
- Impact Resistance: Meet solar hail impact standard
- Broken State: Granular fragments, safe tempered glass
- Density: 2.5 g/cm³
- Thermal Stability: -40℃ ~ +85℃
4. Dimension Tolerance
- Thickness Tolerance: ±0.2mm
- Size Tolerance: ±0.5mm~1.0mm
- Edge & Hole: Custom grinding, drilling, notching available
5. Weather Resistance
- High weatherability, anti-aging, anti-UV
- Salt spray resistance, suitable for outdoor & BIPV
- Service Life: ≥25 years
Features:
1.Solar Glass has high light transmittance due to low-iron material, it is also called"ultra white"glass, it is pattened design which can reduce the the sunlight lose and increase the power electricity generation.
2.the surface of glass can not only reduce the reflection, but also can have the function of self-cleaning, which can increase the power generation.
3.Solar Glass has the character of good electrical insulation performance, its resistivity is greater which can insolate the circuit of the battery,so it can ensure the safefy of the power generation system.
4.the glass is tempered by chemical and physical treatment, it is round polish edged, it will hurt hands when operating.
Application of Solar Tempered Glass
the solar tempered glasss most commoly used as the front cover of solar panels and solar water heater and solar collectors, where it protects internal pv cells from external damager such as hail, wind-blown debris and UV radiation while ensuring 90% of sunlight penetrates to maximize
energy conversion efficiency.

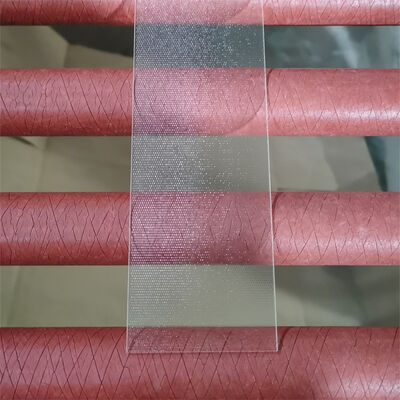

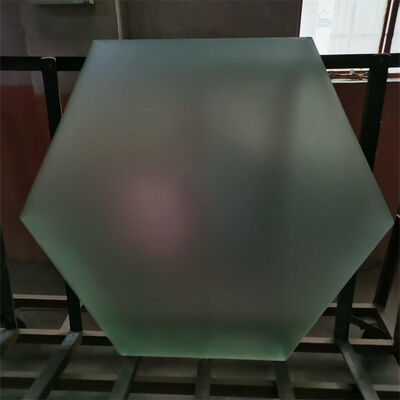

Product Pictures
