| Brand Name: | YIWO |
| Model Number: | YIWO25110508 |
| MOQ: | 20 Square Meters |
| Price: | USD 0.99-USD2.15/Square Meter |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 100000 square meters/month |
High Light Transmittance Solar Tempered Cover Glass for Solar Water Heater and Solar Colletors
Products introduction:
Crafted with advanced coating technology, this glass boasts superior thermal stability and weather resistance, capable of withstanding extreme temperatures, humidity, and UV radiation—making it suitable for both residential and commercial solar water heater installations in diverse climatic conditions. Its durable structure also provides reliable protection for internal heating elements, extending the service life of the solar water heater while maintaining consistent heating efficiency.
Available in customized sizes and thicknesses to match different solar water heater models, it is an essential, cost-effective component that enhances the overall performance and sustainability of solar water heating systems.
Specification:
| Thickness tolerance | ±0.2mm |
| Dimension tolerance | ±1mm |
| Diagonal difference | ≤0.1-0.2% |
| Overall bow/warp | <0.2% |
| Local warp | ≤0.3mm/300mm |
| Fragmentation test | ≥40 particles within 50x50mm |
| Scratch hardness | 4~5 |
| poisson's ratio | 0.2 |
| Tensile strength | 42n/mm2 |
| Pressure resistance | 700-900m/mm² |
| Standard size | 1220X2440mm 1500X2000mm, 1830X2440mm (customer size available) |
| Edge processiong | seamed/ground edges(deburred,no sharp corners) |
| Tempering grade | Fully Tempered |
Features:
1. Enhanced Mechanical Strength: Tempered processing ensures surface hardness ≥7H (Mohs scale) and excellent impact resistance, preventing breakage from outdoor impacts (e.g., hail, debris).
2. Superior Light Transmittance: ≥90% (low-iron type ≥93%) visible light transmittance maximizes solar energy absorption, boosting the heating efficiency of solar water heater systems.
3. Exceptional Weather Resistance: Advanced coating and premium glass material resist UV radiation, extreme temperatures (-30℃ to +350℃), humidity, and salt spray, maintaining performance for ≥10-15 years outdoors.
4. Safety Compliance: Fully tempered structure breaks into small, blunt-edged fragments (no sharp shards), meeting international safety glass standards (ASTM C1048/EN 12150) for safe installation.
Application:
1. Commercial Solar Hot Water Projects: Applied in hotels, hospitals, schools, office buildings, and shopping malls. It supports large-scale solar water heating systems to supply hot water for public areas (e.g., hotel guest rooms, hospital wards, school dormitories), reducing energy costs and carbon emissions.
2. Industrial Solar Thermal Utilization: Used in industrial production processes that require medium-temperature hot water (e.g., food processing, textile dyeing, chemical production). It integrates with industrial solar collector systems to provide stable, low-cost thermal energy, replacing traditional fossil fuel heating.

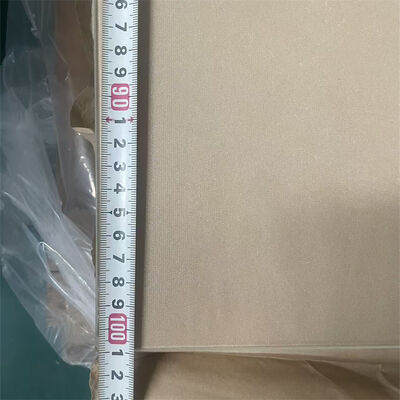

Products pictures:
