| Brand Name: | YIWO |
| Model Number: | YIWO25102806 |
| MOQ: | 10 Square Meters |
| Price: | USD0.9-USD2.1/SQM |
| Supply Ability: | 2000000 Square Meter/Year |
2272X1128 Shape Customized Edge Polished Solar Tempered Module Glass Patterned Solar PV Glass For Solar Module
Solar tempered glass is a core component for photovoltaic (PV) modules, specifically engineered to balance durability, optical performance, and environmental adaptability. As the front cover of PV panels, it serves dual critical functions: maximizing sunlight transmittance to boost energy conversion efficiency, and providing robust protection for internal solar cells against mechanical impact, weathering, and external damage.
Specification
| Material | Ultra white glass |
| Thickness | 2mm, 2.5mm, 3.2mm,4mm |
| Size | 2272X1128X2mm, can be customized |
| Certification & Standard | EN 12150, IEC 61215, GB 15763.2-2005, ASTM E903 |
| Coating Hardness | Front Glass: ≥3H; Back Glass: ≥9H (Pencil Hardness Test) |
| ight Transmittance | ≥91.6% (3.2mm Standard PV Glass); ≥93.6% (3.2mm AR Coated PV Glass) |
| Optical Performance | Front Glass: PV Transmittance ≥93.5% (≤3.2mm); Back Glass: PV Reflectance ≥70% |
| Temperature Coefficient | -0.39%/°C |
| Weight | 20.0kg/piece (Based on 1762×1134×3.2mm) |
| Operating Temperature Range | -40°C ~ 85°C |
| Mechanical Strength | Bending Strength ≥150MPa; Impact Resistance: Pass 1kg steel ball drop test from 1m height |
| Weather Resistance | Resistance to humidity, UV radiation, and salt spray (Complies with IEC 61730) |
| Color | Ultra clear |
1. More than 10 years experiences on glass manufacturing and exporting.
2. Top quality glass with CE certifica·10 years experiences on glass manufacturing and exporting.
3. Top quality glass with CE certificate, exporting to more 90 countries in the world.
4. Unique designed solid wooden cases, solving the problems of breakage.
5. Dockside warehouses beside three of China main container seaports, ensuring convenient loading and rapid delivery.
6 Full range of flat glass supply, offering one-stop purchase.
7. Professional sales team, offering personalized and dedicated services.
Packaging&Delivery:
Packaging Details:

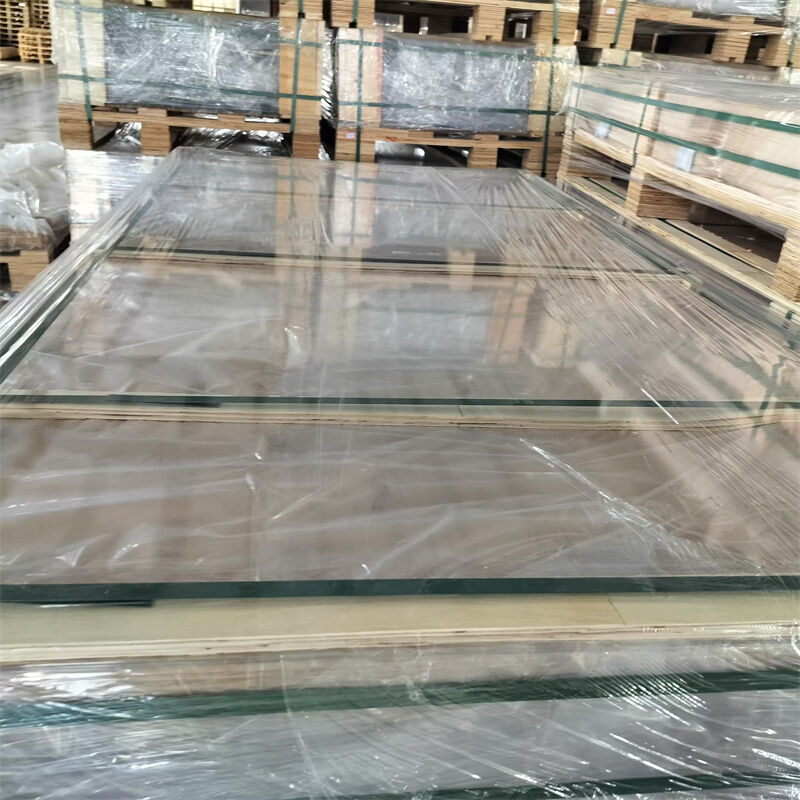

1. Glass surface is first film-coated for protection. Externally, the glass is individually wrapped with paper or expandable polyethylene (EPE) foam, then packed in sturdy, seaworthy wooden crates.
2. All wooden crates are designed to be suitable for both ocean and land transportation.
Delivery Time: Within 4-15 working days
