| Brand Name: | YIWO |
| Model Number: | YIWO025102801 |
| MOQ: | 10 Square Meters |
| Price: | negotiation |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 300000 Square Meter/Square Meters per Month |

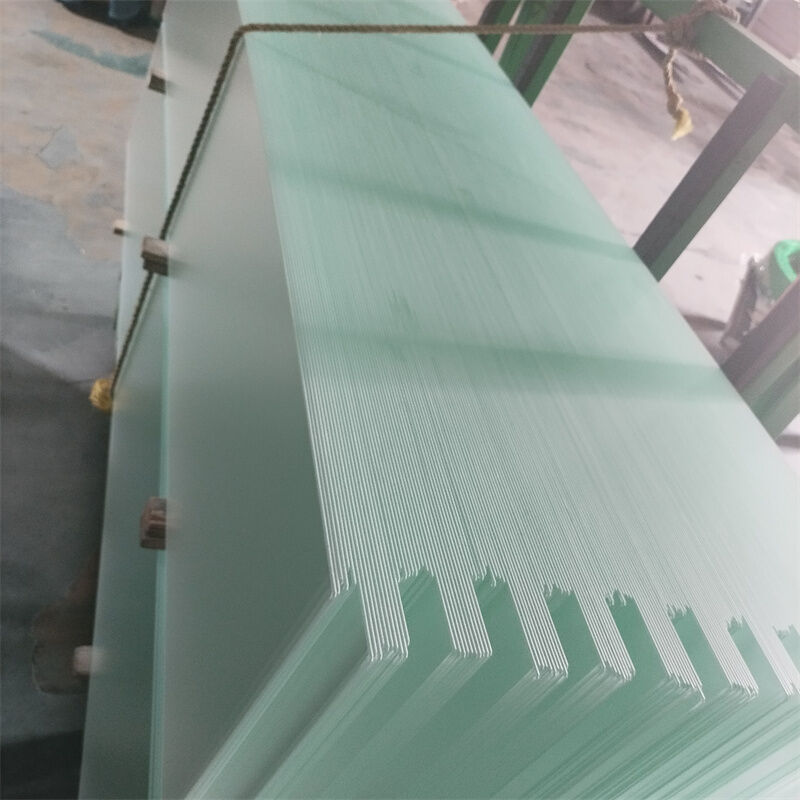

Patterned Textured Low Iron Tempered Solar Glass 2mm 3.2mm 4 mm Thickness For Solar Panels
3.2mm low-iron toughened solar panel coating glass mainly used on solar panel because of its super light transmittance rate. Solar panel is a thin layer of optoelectronic semiconductor which converting solar energy into electricity. By considering its efficiency, we are using High-transmittance and low reflection glass for its panel. This high strength glass maintains the best image quality by elimination unwanted distortions with the advanced optical technology.
Specification
|
Terms
|
condition |
| Thickness | 2mm,2.5mm,3.2mm,4.0mm,etc. |
| Width | 45mm to 1150mm |
| Iron content | < 120 PPM |
| Light transmittance | > 93.8% |
| Size | customized by request |
| MOQ | 100 square meter. |
| Terms of the payment | 100% T/T in advance. |
| packing | 100 pcs/carton/pallet. every sheet interlayed by paper. |
| Date of the delivery | In accordance with Order quantities: 5 days to 30 days. |
Feature
1. Exceptional Mechanical Strength
Processed via thermal tempering (rapid heating + quenching), it achieves 3-5 times higher strength than ordinary float glass. Highly resistant to impact, bending, and thermal shock, it can withstand hail, sandstorms, and accidental collisions in outdoor environments.
2. Safety-Optimized Shatter Behavior
When broken, it fragments into small, blunt-edged pieces (instead of sharp shards), minimizing risks to personnel, equipment, and property—critical for rooftop, public, and large-scale PV installations.
3. High Optical Transmittance
Optically refined (especially with anti-reflective (AR) coating), it delivers light transmittance of ≥93%, effectively reducing solar energy reflection and maximizing photon absorption by solar cells to boost PV module efficiency.
4. Superior Weather Resistance
Withstands extreme environmental conditions: -40°C to 85°C temperature fluctuations, long-term UV radiation, high humidity, salt spray (coastal areas), and sand erosion (deserts), ensuring stable performance for 25+ years.
5. Compliance with International Standards
Meets strict global certifications such as EN 12150 (tempered glass safety), IEC 61215 (PV module reliability), and ASTM E903 (optical performance), guaranteeing compatibility and quality for global PV projects.
6. Customizable for Diverse Scenarios
Available in various thicknesses (3.2mm, 4mm, etc.), sizes, and surface treatments (AR coating, anti-soiling coating), adaptable to BIPV, floating solar, portable devices, and other special PV applications.
Application:
It mainly used to encapsulations of t the monocrystalline silicon, polycrystalline silicon and amorphous silicons of the solar cell, solar module, solar panel and BIPV panels. greenhouse, solar heater collector.

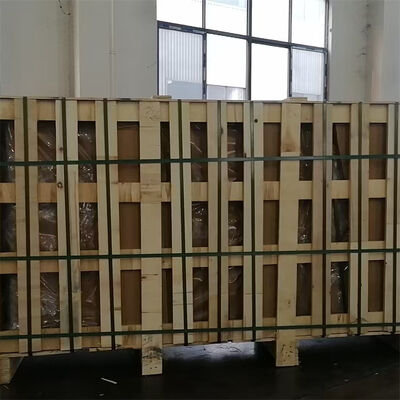

Packaging&Shipping
Packaging Details: 100 pcs/carton/pallet. every sheet interlayed by paper.
Delivery Time: Within 10 days to 15 days
