2mm - 19mm Clear Float Glass Solid Float Glass Cut To Size For Construction Interior And Exterior Decoration

2 mm - 19mm Float Glass 10 mm Float Glass Cut To Size For Construction Interior and Exterior Decoration

2mm 3mm 4mm 5mm 6mm 8mm 10mm 12mm 15mm 19mm Clear Float Glass

   Clear float glass is a high-quality flat glass manufactured via the advanced float process—a revolutionary production technology that involves pouring molten glass onto a bath of molten tin, allowing the glass to spread evenly and cool into a flat, smooth sheet. This process eliminates the surface irregularities common in traditional glass, resulting in a product with exceptional clarity, uniform thickness, and superior optical performance.With stable physical properties (Mohs hardness 6-7, bending strength ≥80 MPa), clear float glass offers reliable scratch resistance and structural stability, suitable for long-term use in high-traffic or demanding environments.

Main features:

1. Basic Physical & Mechanical Properties

Parameter Index (for 5mm thickness)
Density 2.5 g/cm³
Mohs Hardness 6-7 (scratch-resistant to ordinary objects)
Bending Strength ≥ 80 MPa
Elastic Modulus 70-75 GPa
Thermal Conductivity 0.8 W/(m·K)
Thermal Expansion Coefficient (9.0±0.2)×10⁻⁶/°C (20-300°C)
2. Surface & Dimensional Standards

- Surface Quality: Complies with GB/T 11614-2022 Grade A / ISO 12543-2 Class 1 (no obvious bubbles, scratches, or inclusions)
- Flatness Tolerance: ≤ 0.3mm/m (ensures stable processing performance)
- Dimensional Tolerance: Length/Width ±1mm (common sizes); Thickness ±0.2mm (2-6mm) / ±0.3mm (8-19mm)

3. Processing Adaptability

- Suitable for: Cutting, tempering, heat strengthening, laminating, insulating, silk-screen printing, coating (low-e, silver mirror, etc.)
- Temperature Resistance: Can withstand 200-300°C short-term heat (before tempering); Tempered products can resist up to 280°C

4. Optical Performance

- Light Transmittance: ≥ 89% (uncoated, 5mm); ≥ 91% (ultra-clear float glass, 5mm)
- Haze: ≤ 0.1% (ensures high clarity, no visual distortion)
- Refractive Index: 1.52 (at 550nm visible light)


5. Environmental & Safety Indicators

- Heavy Metal Content: Complies with RoHS/REACH standards (environmentally friendly, non-toxic)
- Sound Insulation: ≥ 30 dB (5mm single sheet; higher with insulating structure)

Applications:

1. Doors & windows (residential/commercial, custom-sized)
2. Building facades & architectural curtain walls

3. Mirror coating (high-end silver mirror substrates)
4. Greenhouses, solar collecting roofs, large ornamental fish tanks, etc.
5. Household electrical appliances (e.g., premium appliance glass components)
6. Custom furniture & interior decoration
7. PV modules & solar water heater glass covers
8. Exquisite craftworks & decorative lighting accessories

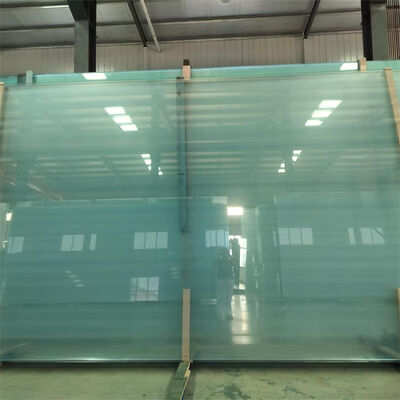

Production Pictures:

packaging&Shipping
