| Brand Name: | YIWO |
| Model Number: | Tempered glass |
| MOQ: | 10 Square meters |
| Price: | negotiation |
| Supply Ability: | 25 Ton/Tons per Day |

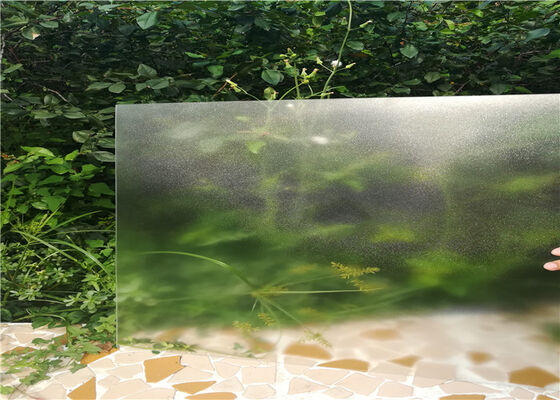

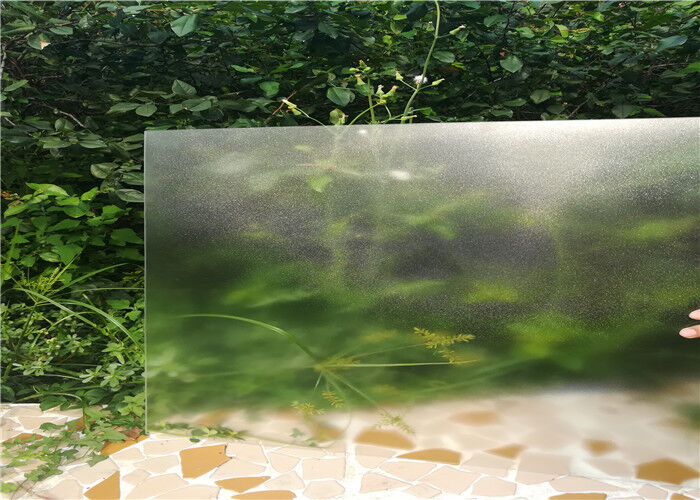

Ultra Clear Patterned Solar Panel Glass High Transparent Textured Low Iron Content
Products description:
High transparent glass is ultra-white glass takes full advantage of the diffuse reflection of the pattern to decrease the light reflection. Thus has a very high solar transmittance at any angle incidence. It is the ideal encapsulation material for solar panels(PV modules) and the flat solar thermal products.
Specification:
| Color: | extra / Ultra clear / Low iron |
| Thickness: | 3.2mm, 4mm |
| Normal Sizes: | 1524x2134, 1600x2400, 2140x1650, 3300x2140, 3300x2250… |
| Packing: | In wooden crates with paper between the sheets in general containers. |
| Delivery: | Within 7-15 days after received 30% deposit or original L/C at sight. |
| Payment: | T/T, L/C, Cash, West Union, etc. |
Thickness |
3.2mm,4mm |
| Max.Size | 2250*3500mm(annealed),1830*2600mm(tempered) |
| Size | 1220 x 915mm, 1830 x 1220mm, |
| Customized size | |
| Colors | Clear and ultra clear |
| Package | Safety seaworthy wooden and plywood packing with paper interleaved |
| Applications | solar panel and solar water heater |
| Types | 1. Solar patterned glass(tempered or non-tempered) |
|
2. Solar float glass(temoered or non-tempered) / |
Feature :
1. Low iron content
2. High solar transmittance: >= 91.7%
3. Low visible light reflectivity
4. Clear and pattern glass
5. Fully tempered
Packaging&Shipping:
1. Anti-fungicide paper interlayer between two sheets,wooden crates with strong bottom plank
2. In strong wooden crates suitable for long-distance ocean transportation, with fumigation and CO.
3. Could pack well according to customer's requirement
Delivery Time: Shipped in 10 days after payment
