Aluminum Mirror Glass Advanced Solution for Optimal Reflectivity Environmental Stability

Aluminum Mirror Glass - Technical Specifications & Applications​​

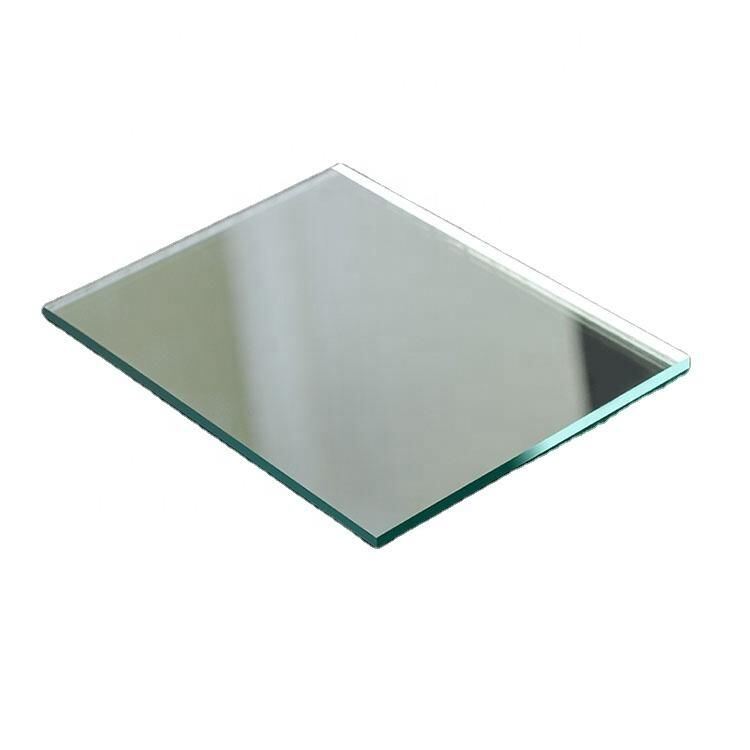

Aluminum mirror glass is an advanced reflective glass product created by depositing a thin, uniform layer of aluminum onto high-quality float glass through a vacuum deposition process. This type of mirror offers superior performance characteristics compared to traditional silver mirrors in many applications.

​​Key Technical Specifications:​​

1. ​​Reflectivity:​​ 86-92% across visible spectrum

2. ​​Coating Thickness:​​ Typically 50-100 nm aluminum layer

3. ​​Substrate Options:​​ Clear, ultra-clear, or tinted float glass (2-19mm thickness)

4. ​​Surface Accuracy:​​ λ/4 to λ/20 for optical grade applications

5. ​​Protective Coatings:​​ SiO₂ overcoat (optional for enhanced durability)

​​Performance Advantages:​​

• ​​Environmental Stability:​​ Unlike silver mirrors, aluminum maintains reflectivity in humid environments (RH up to 95%)

• ​​Thermal Performance:​​ Coefficient of thermal expansion matches glass substrate (≈9 x 10⁻⁶/°C)

• ​​UV Reflectivity:​​ Maintains >85% reflectivity down to 250nm wavelength

• ​​Adhesion Strength:​​ 5B classification per ASTM D3359

​​Industrial Manufacturing Process:​​

1. ​​Substrate Preparation:​​ Precision cleaning to achieve <5nm surface roughness

2. ​​Vacuum Deposition:​​ Electron beam evaporation at 10⁻⁶ Torr

3. ​​Oxidation Control:​​ In-situ oxidation barrier application

4. ​​Quality Control:​​ Spectrophotometric reflectivity measurement

​​Specialized Variants:​​

1. ​​First Surface Mirrors:​​ Aluminum coating on front surface (reflectivity up to 94%)

2. ​​Dielectric Enhanced:​​ Multilayer dielectric stack boosts reflectivity to >99% at specific wavelengths

3. ​​Anodized Aluminum:​​ Hard-coated for extreme environments

​​Standards Compliance:​​

• ISO 9802 (Optical mirrors)

• ASTM C1503 (Reflective glass)

• MIL-M-13508 (Military specifications)

• EN 1036 (Building grade mirrors)

​​Industry Applications:​​

1. ​​Solar Energy:​​ Heliostat reflectors with >90% solar-weighted reflectivity

2. ​​Precision Optics:​​ Telescope components requiring <λ/20 surface flatness

3. ​​Semiconductor:​​ Photolithography system mirrors with <0.5% reflectivity variation

4. ​​Architectural:​​ High-durability facade systems with 25-year performance warranties

​​Maintenance Protocols:​​

• Clean with anhydrous ethanol using lint-free wipes

• Avoid alkaline cleaners (pH >9 damages aluminum layer)

• Storage in nitrogen-purged containers for optical grades

​​Comparative Performance Data:​​

​​Leading Global Suppliers:​​

1. ​​Melles Griot​​ (Precision optical mirrors)

2. ​​Dynasil​​ (X-ray astronomy mirrors)

3. ​​Abrisa Technologies​​ (Thin-film coated mirrors)

4. ​​PPG Industries​​ (Architectural grade)

For mission-critical applications, we recommend specifying:

• Surface flatness tolerance

• Environmental testing protocols

• Certified reflectivity measurements at multiple wavelengths

• Custom anti-reflection coatings as needed
